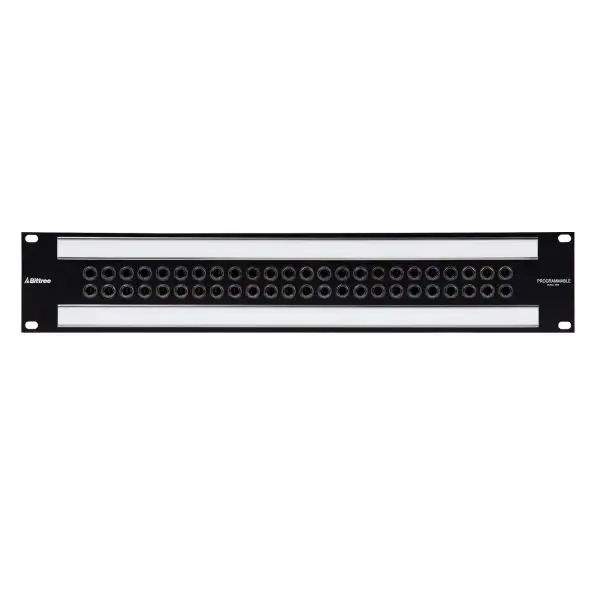

The Bittree 489-S Series Full Normal Switched 12″ Patch bay is a front programmable 1/4 inch audio patch bay in 2RU height with E3 Rear Interface.
Features:
- Spacious 2×24 jack configuration with mono (even) jack spacing
- Ships preconfigured with your preferred Normalling and Grounding configuration
- Circuits can be easily reprogrammed via shunts under the top designation strip
- Digital AES wire used for internal wiring
- 2 x DS800-10 designation strips, “Over/Under” orientation
- E3 rear interface with mating hardware included: 48 x E3M connector housings (3-pin male), 144 x EPIN crimp contacts (gold-plated)
- 6″ (15.24 cm) deep rear lacing bar included:
- Normalling: circuits programmed to full normal
- Grounding: preconfigured with switched grounds
- Chassis dimensions: 12″ (30.48 cm) deep fully enclosed chassis
