The Bittree Patch32A Dante Patch bay serves as a natural bridge between legacy audio equipment and IP-based systems that use Audinate’s popular Dante media networking technology, including the Dante platform’s recently-added AES67 and SMPTE ST-2110 interoperability. The Patch32A eliminates the complexity of analog and Dante audio patching by minimizing cabling, conversion equipment and associated costs for broadcasters, recording studios, post-production facilities, houses of worship, performance venues, large corporate offices, higher education campuses and other professional AV environments.

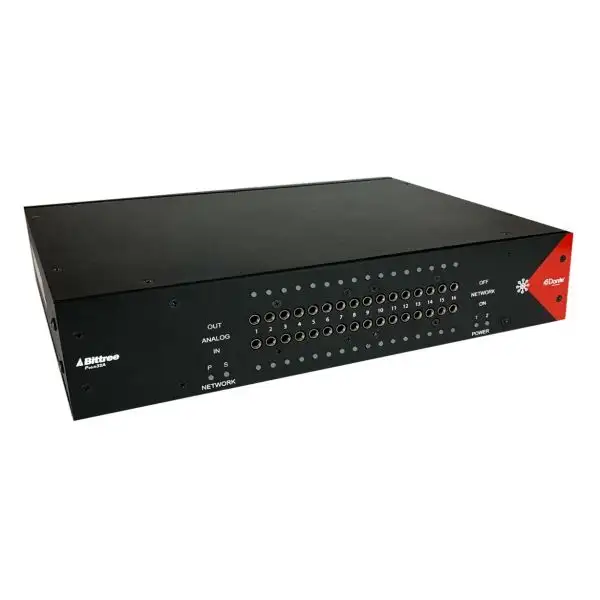

The Patch32A comes in a 1.5RU desktop form factor and features TT patching connections for analog I/O (16×16), redundant DC power inputs, external word clock I/O, network status indicators, and LED audio VU metering. 24-bit audio sampling at rates from 44.1 to 192 kHz is complemented by professional analog-to-digital conversions that maximize signal integrity and audio fidelity. The Patch32A can easily interface with Dante Virtual Soundcard, more than 1600 third-party Dante-enabled devices, and almost any analog component in the same system – from audio distribution equipment and recorders to digital audio workstations (DAWs), DSPs and mixing consoles.

Line Outputs:

• TT Jacks 16
• EIN: -96 dbU A-Weighted
• SNR: 120 dB

Features:

• Standalone desktop Dante patch bay with 4 rubber feet
• 7″ (17.78 cm) deep fully enclosed chassis
• Bitree’s renown double full frame TT jacks
• 16 TT patchable inputs and outputs
• 16 input and 16 outputs to Dante network (AES67 ready)
• Redundant power inlets
• Redundant Dante network ports
• Supports 44.1 to 192 lHz sample rate at 24-bit
• Jumper selectable input and output levels (18 dBu, 24 dBu or 10 dBV)
• Front panel VU and status indicators
• TT Jacks 16
• 0 DBFS Reference Levels 18 dBu, 24 dBu, -10 dBV (jumper selectable)
• Frequency Response: 20 Hz – 20 kHz ±0.25 dB
• Sample Rates 44.1, 48.8, 88.2, 96, 176.4, 192K at 24-bit
• Clock Sources Internal, External, Dante Network Master
