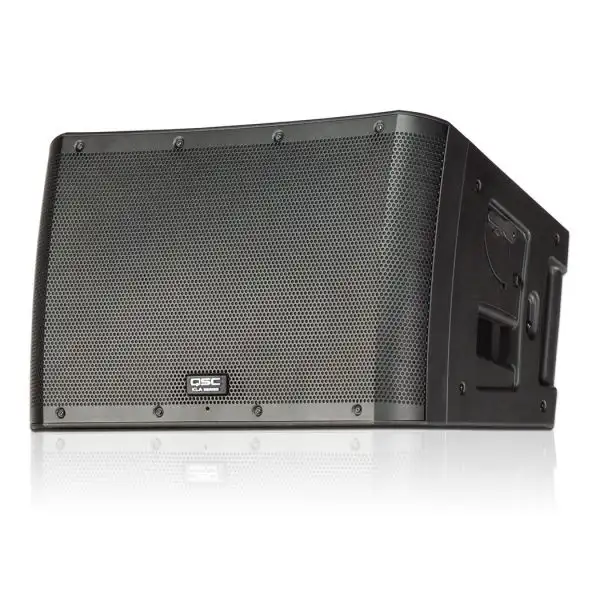

The QSC KLA12 brings the power and sophistication of a line array system into an easy-to-use product significantly redefining the line array product category. With its simple Lift, Click and Play approach, KLA can be deployed in a fraction of the time required by comparable line array products.
The KLA Series is comprised of two models, the KLA12 12-inch, 2-way loudspeaker and the KLA181 18-inch subwoofer. The KLA12 features a highly efficient 500 watt by 500 watt power amp module and the KLA181 offers the same highly efficient power amp module in a 1,000 watt configuration. This efficient design enables up to five KLA models (any combination of KLA12 and KLA181) to be driven off of a single 15 amp, 120 volt electrical circuit.
This fixed arcuate, active line array system is ideal for a wide range of portable and permanently installed applications ranging from live entertainment to houses of worship or other venues where a line array system is desired.
KLA loudspeakers incorporate QSC’s DEEPโข DSP algorithm – providing extended bass response by actively managing potentially damaging low-frequency transients – and GuardRailโข circuitry protection which prevents the amplifier module from unnatural and destructive clipping.
As an energy saving feature, the Auto Standby mode automatically engages after five minutes of inactivity but upon resumption of audio signal, the power module on the KLA will awaken instantly for immediate output.
Features:
- 500 W + 500 W power module
- Rugged, ABS enclosure delivers light-weight durability
- SOLOโข Rigging System supports deployment without tools or external hardware
- Ar-Qโข Frequency Optimization quickly tunes the array with the click of a dial, adjusting for the appropriate number of boxes
- 10:1 design factor supports arrays of up to 480 lbs. (218 kg) 5 ร KLA12 and 2 ร KLA181
- 90ยฐ ร 18ยฐ nominal coverage (requires only five boxes to configure a 90ยฐ x 90ยฐ array)
- High power, 12โ low frequency driver provides extension down to 44Hz without subwoofers
- Extensive DSP further enhances and protects performance
- 1.75โ diaphragm compression driver delivers clear and powerful high-frequency reproduction
- powerCONยฎ Input and Thru connections
- Tilt-Directโข pole mount assists directivity in single-unit applications
