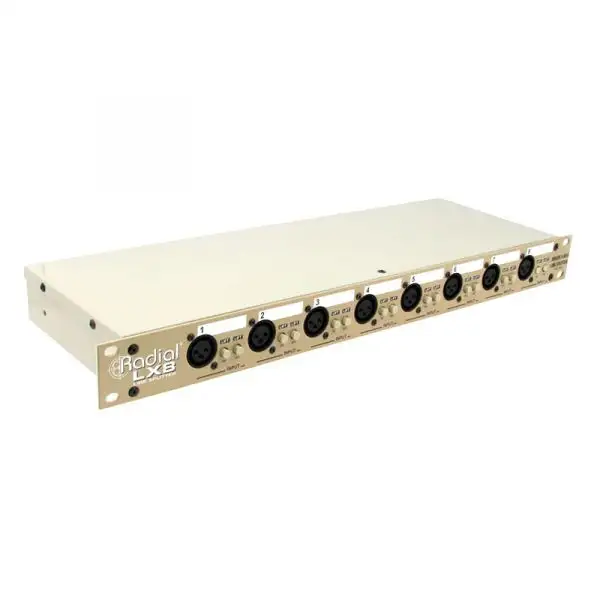

New ✔️ Radial Engineering LX8 🎉

The Radial Engineering LX8 is an eight channel passive line-level isolator designed specifically to manage balanced signals in professional audio systems. Applications include splitting a source between two destinations or simply isolating devices to eliminate the hum and buzz caused by ground loops.

The single rack space design begins with 100% passive circuit which means it does not require any powering whatsoever to make it work. Inside, each of the eight channels is equipped with a premium Eclipse ET-LD4 transformer that is able to handle transients in excess of +26dB at all frequencies right down to 20Hz without audible distortion. This results in an accurate signal transfer with minimal phase shift or artifact. In the studio, the Eclipse transformer delivers added warmth and a natural ‘vintage-sounding’ compression that is preferred by the most critical listeners. When used in larger systems, you benefit from significantly lower noise.

Input connections include a series of front-panel XLRs for easy integration into live racks or a rear-mounted 25-pin D-sub. Output connections include a hardwire thru-put, a transformer isolated output and an auxiliary output, the latter two being equipped with ground lift switches to help eliminate hum and buzz caused by ground loops. All rear panel connections are presented with choice of standard 25-pin D-Sub wired to the Tascam-ProTools standard or with screw-down Phoenix connectors for easy field termination for permanent installations. (Note: The Phoenix cable terminal connectors are sold separately).

Features:

• 8-channel balanced line level signal splitter & isolator
• Handles +26dB signals without distortion or artifact
• Over 100dB of common mode noise rejection
• Eliminates hum and buzz caused by ground loops
